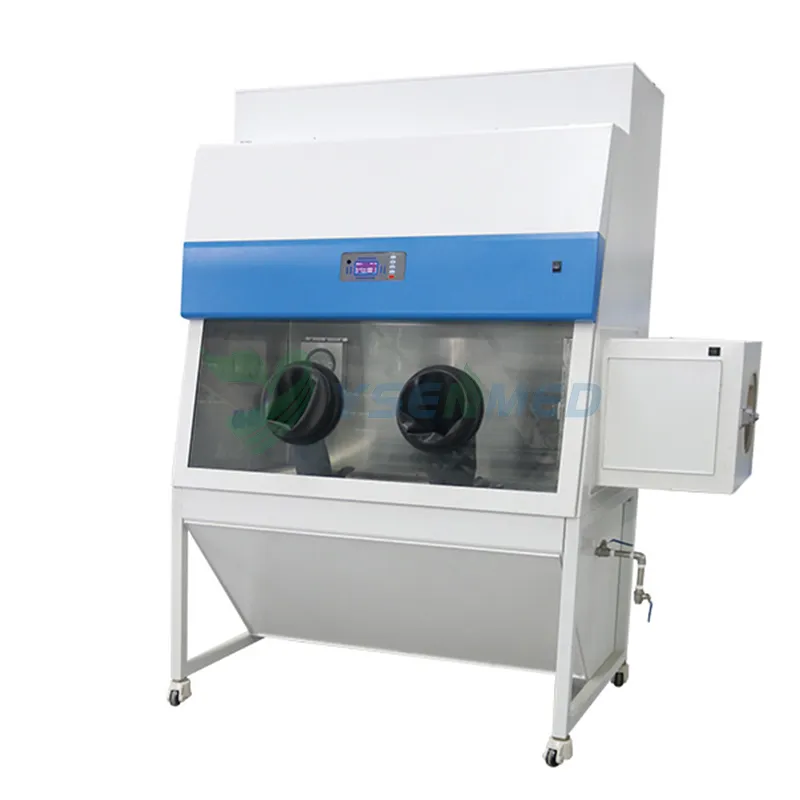

Class III Laboratory Biological Safety Biosafety Cabinet BSC-1100IIIX

Model：BSC-1100IIIX

Introduction:

Class III Biosafety Cabinet is totally enclosed and gas-tight, it also can meet the requirement of operating Class I,II,III,IV pathogenic factor. It can be used in P3,P4 laboratory.

Features:

1. With memory function in case of power-failure.

2. UV lamp ensures work area sterilization effectively.

3. An angled cabinet front ensure an ergonomic working posture.

4. Exhaust air is double-filtered through high-quality ULPA filters with typical efficiency of 99.9995% for 0.12μm particles.

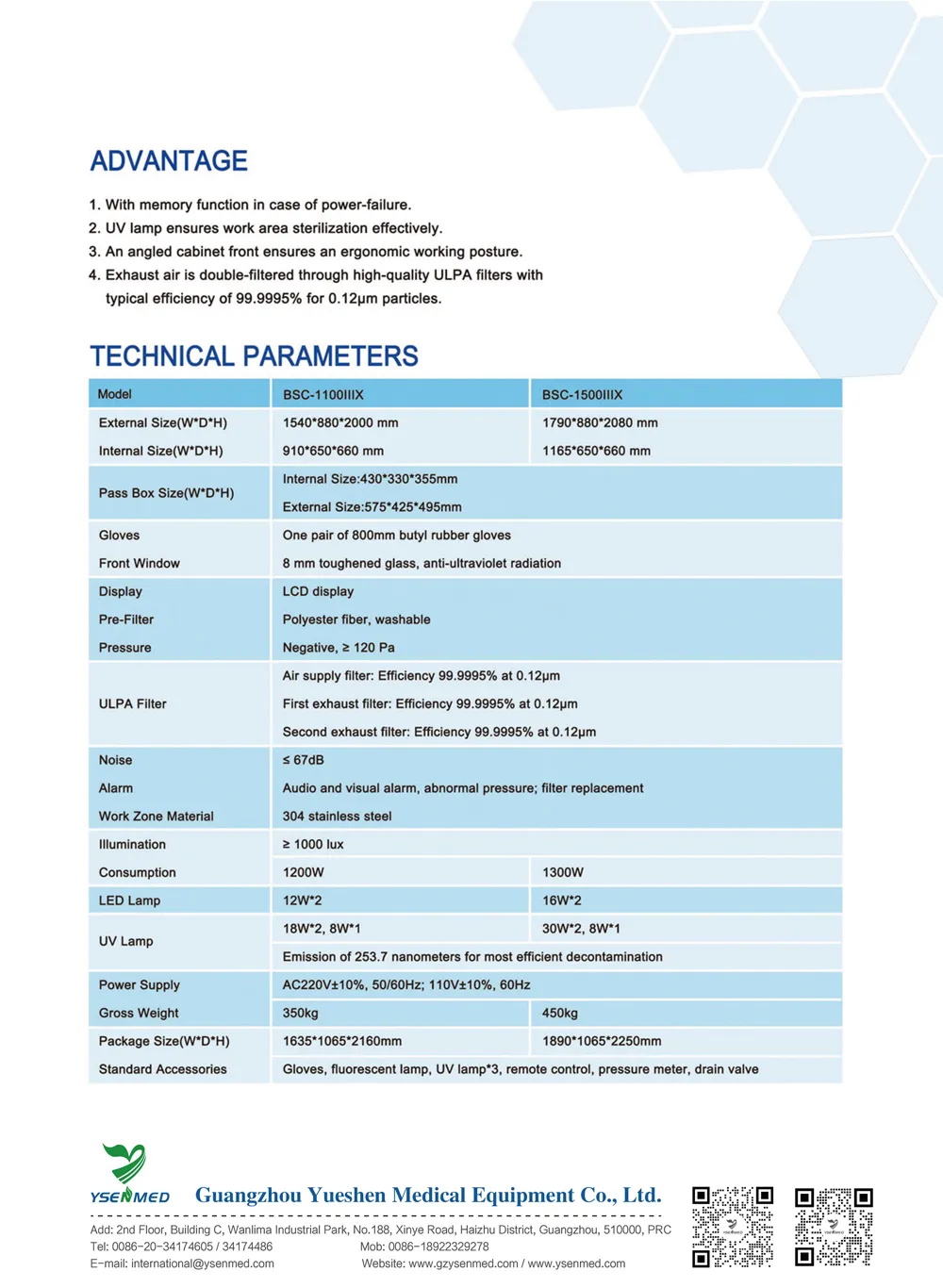

Technical Parameters:

Model BSC-1100IIIX BSC-1500IIIX

External Size(W*D*H) 1540*880*2000mm 1790*880*2080mm

Internal Size(W*D*H) 910*650*660mm 1165*650*660mm

Pass Box Size(W*D*H) Internal Size: 430*330*355mm

External Size: 575*425*495mm

Gloves One pair of 800mm butyl rubber gloves

Front Window 8mm toughened glass, anti-ultraviolet radiation

Display LCD display

Pre-filter Polyester fiber, washable

Pressure Negative, ≥120Pa

ULPA Filter Air Supply Filter: Efficiency 99.9995% at 0.12μm

First Exhaust Filter: Efficiency 99.9995% at 0.12μm

Second Exhaust Filter: Efficiency 99.9995% at 0.12μm

Noise ≤67dB

Alarm Audio and visual alarm, abnormal pressure, filter replacement

Work Zone Material 304 stainless steel

Illumination ≥1000lux

Consumption 1200W 1300W

LED Lamp 12W*2 16W*2

UV Lamp 18W*2, 8W*1 30W*2, 8W*1

Emission of 253.7 nanometers for most efficient decontamination

Power Supply AC220V±10%, 50/60Hz; 110V±10%, 60Hz

Gross Weight 350kg 450kg

Package Size(W*D*H) 1635*1065*2160mm 1890*1065*2250mm

Standard Accessories Gloves, fluorescent lamp, UV lamp*3, remote control, pressure meter,

drain valve
