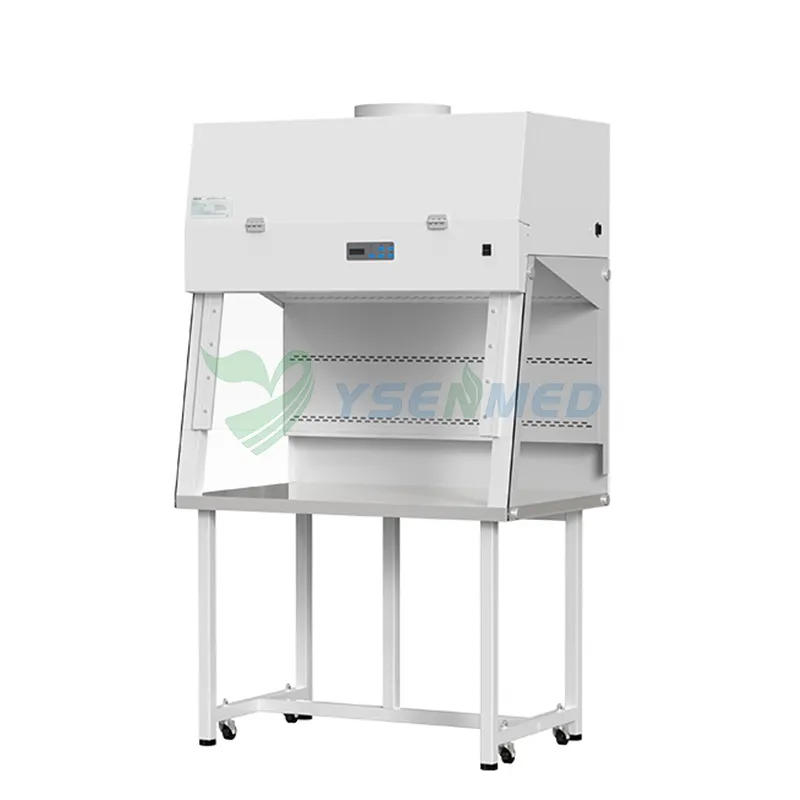

Class I Biological Safety Cabinet BYKG-V

Model：BYKG-V

Introduction:

The Class I biological safety cabinet can adequately protect the harm caused by aerosol pollution, and effectively protect the personnel and environment. It is negative pressure air inlet in front window of Class I biological safety cabinet which can protect the operators and the exhaust air goes through HEPA filter which can protect the environment. The Class I Biological safety cabinet can be placed on anywhere with it’s simple and portable structure.

Features:

1. UV lamp for sterilization.

2. Soft touch control panel, LCD display(Only BYKG-III).

3. Energy-saving, high efficiency, low noise.

4. With memory function in case of power-failure.

5. One piece 304 stainless steel work stable, easy for cleaning.

6. Stable air flow system; provide firm protection to people and environment.

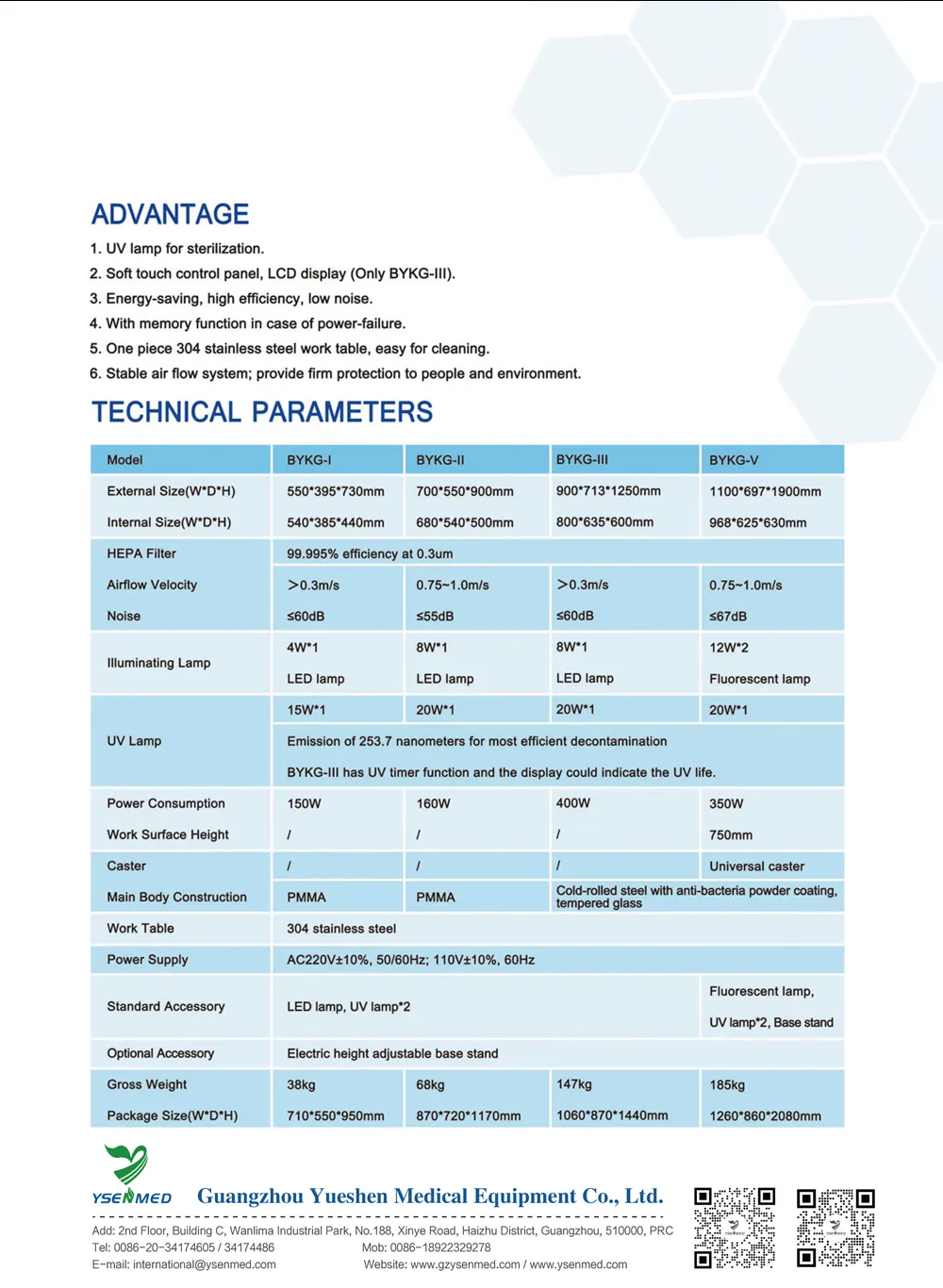

Technical Parameters:

Model BYKG-I BYKG-II BYKG-III BYKG-V

External Size(W*D*H) 550*395*730mm 700*550*900mm 900*713*1250mm 1100*697*1900mm

Internal Size(W*D*H) 540*385*440mm 680*540*500mm 800*635*600mm 968*625*630mm

HEPA Filter 99.995% efficiency at 0.3μm

Airflow Velocity >0.3m/s 0.75~1.0m/s >0.3m/s 0.75~1.0m/s

Noise ≤60dB ≤55dB ≤60dB ≤67dB

Illuminating Lamp 4W*1

LED lamp 8W*1

LED lamp 8W*1

LED lamp 12W*2

Fluorescent lamp

UV Lamp 15W*1 20W*1 20W*1 20W*1

Emission of 253.7 nanometers for most efficient decontamination

BYKG-III has UV timer function and the display could indicate the UV life.

Power Consumption 150W 160W 400W 350W

Work Surface Height / / / 750mm

Caster / / / Universal caster

Main Body Construction PMMA Cold-rolled steel with anti-bacteria powder

coating, tempered glass

Work Table 304 stainless steel

Power Supply AC220V±10%, 50/60Hz; 110V±10%, 60Hz

Standard Accessory LED lamp, UV lamp*2 Fluorescent lamp, UV

lamp*2, Base stand

Optional Accessory Electric height adjustable base stand

Gross Weight 38kg 68kg 147kg 185kg

Package Size(W*D*H) 710*550*950mm 870*720*1170mm 1060*870*1440mm 1260*860*2080mm
