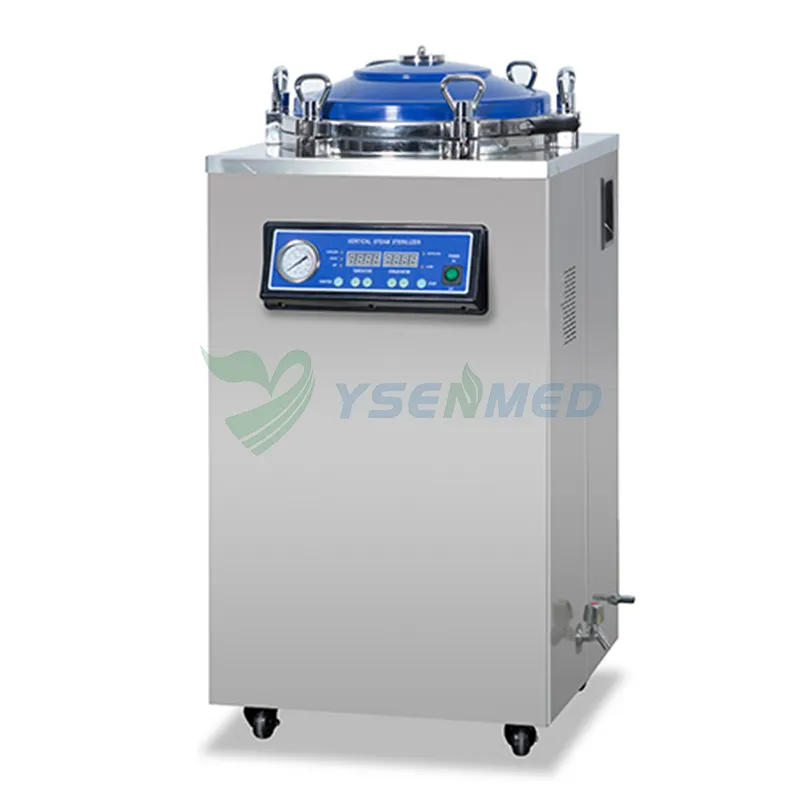

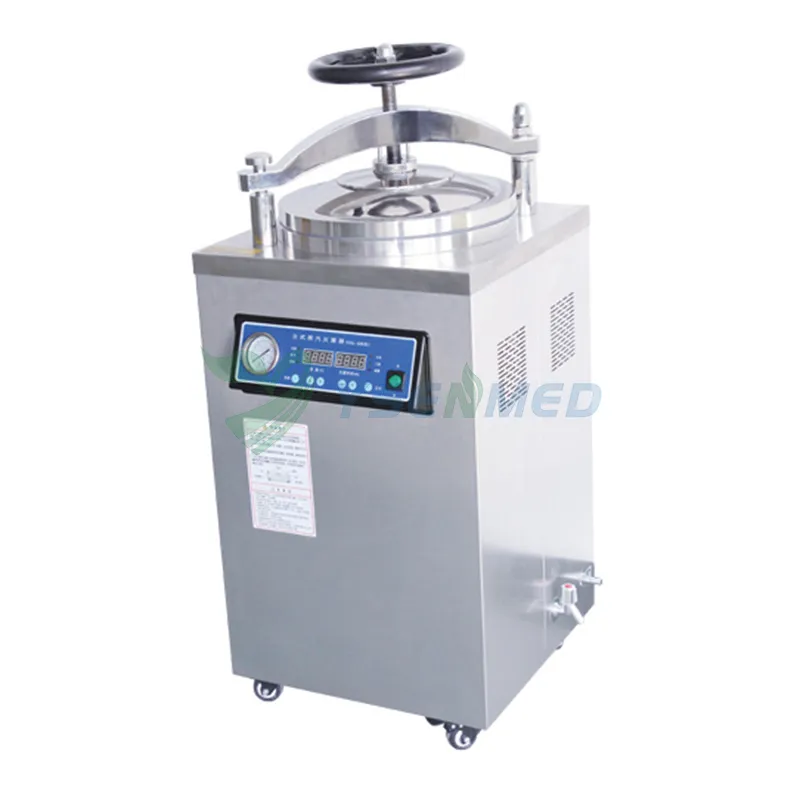

Bolt sterilizer

Bolt sterilizer

Features

Bolt structure

High quality stainless steel material

Microcomputer automatic control, arbitrary set of sterilization parameters

Safety interlocking device

Digital display and touch buttons

Standard test interface

Self-expanding seal

The container with automatic protection function:over temperature protection; over pressure protection self discharge; low water level protection, anti dry burning

With stainless steel bucket or basket

Buzzer reminder after sterilization, automatic stop.

Automatic cooling air, sterilization end automatic exhaust steam

*Optional external printer

Model&Parameter

Technical parameter/ Model	YSMJ-LS-35B	YSMJ-LS-50B	YSMJ-LS-75B	YSMJ-LS-100B	YSMJ-LS-120B	YSMJ-LS-150B
Volume	35L	50L	75L	100L	120L	150L
Power	2.5kW	3.5kW	4.5kW	4.5kW	4.5kW	6.0kw
Voltage	AC 220、50HZ
Rated working pressure	0.22Mpa
Rated working temperature	134℃
Sterilization temperature setting range	50℃~134℃
Sterilization time setting range	4~120 min
Chamber volume	Ø300×500	Ø350×525	Ø400×625	Ø450×650	Ø450×760	Ø500×780
Bucket dimension	Ø280×400	Ø330×460	Ø 380×560	Ø420×540	Ø420×660	Ø470×720
Basket dimension		Ø320x240x2	Ø360x280x2	Ø410x300x2	Ø410x350x2	Ø460x350x2
Outer dimension	400x400x860	480x480x960	522x567x1020	555x555x1080	555x599x1200	605x649x1210
Packing size (LxWxH)	550x500x1030	580x630x1100	630x680x1190	690x650x1230	690x650x1330	750x700x1370
Gross/net weight	58/41KG	75/53KG	82/61KG	103/78KG	108/82KG	116/90KG
