Sterilization Equipment

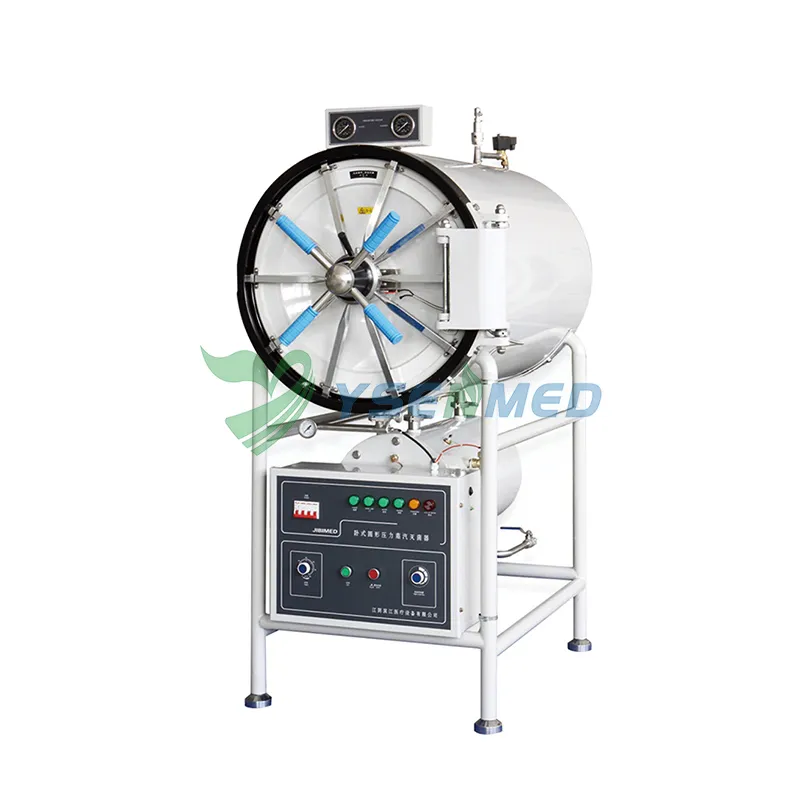

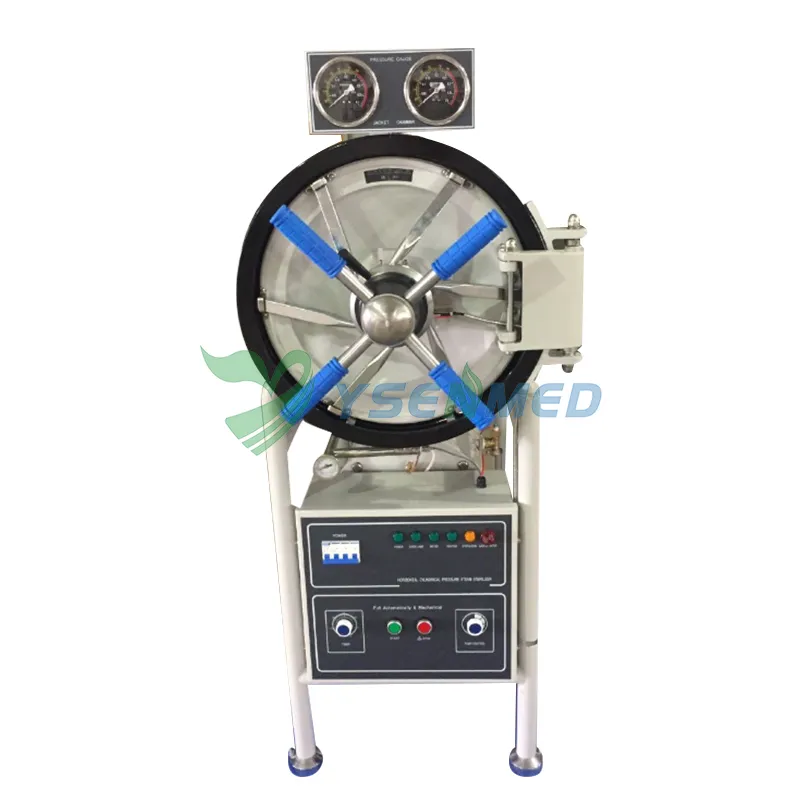

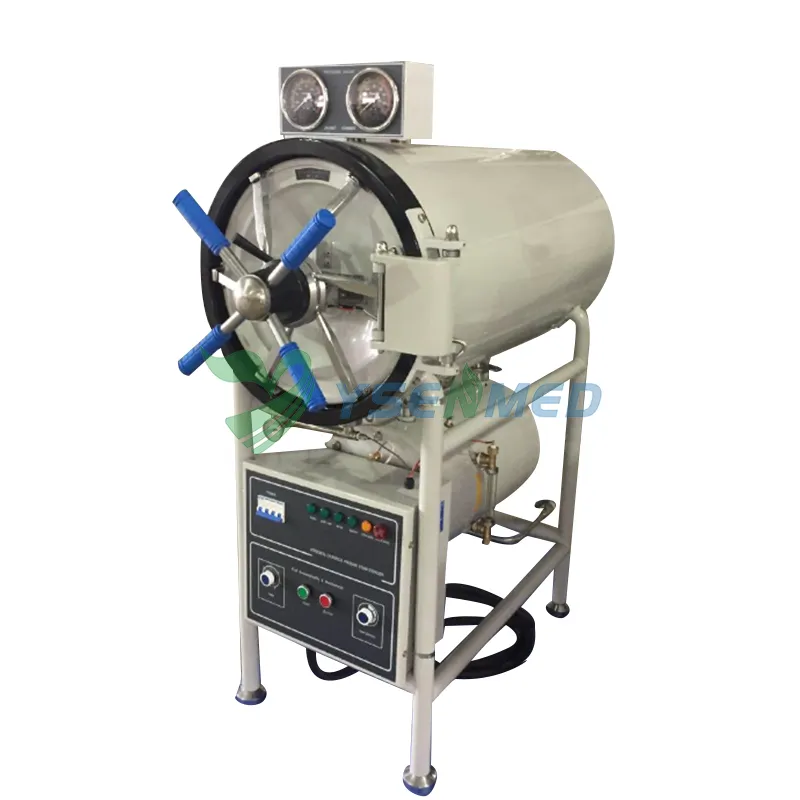

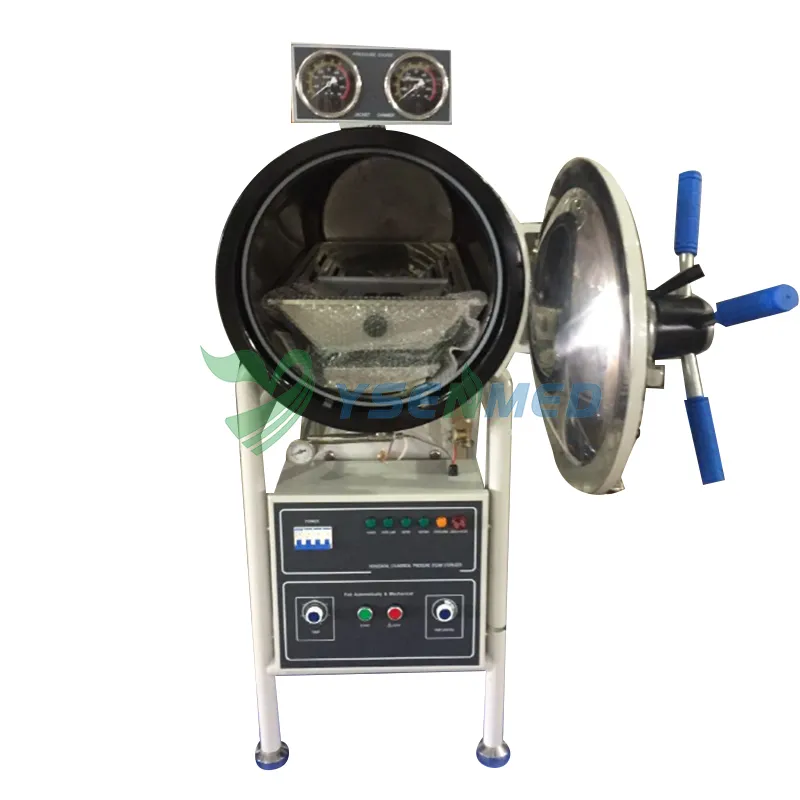

Horizontal cylindrical pressure steam sterilizer

Send Inquiry

    Please prove you are human by selecting the cup.

    Product Cate
    • Autopsy Table
    • Biosafety Cabinet
    • Mortuary Freezer
    • Mortuary Lifter
    • Mortuary Trolley
    • Sterilization Equipment
    • Description
    • Reviews (0)
    • Product PDF Brochure

    Characteristics:

    1. Sterilizing course automatic sterilization controlled,easy to operate.
    2. With drying function,suitable dressing drying.
    3. With over-temperature,over-pressure auto-protect device.
    4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can’t be start on if the door doesn’t close well.

    5.The safety value will be open automatically when the inner pressure over 0.24MPa,and the steam be exhausting to the water tank.

    1. The power will be cut-off automatically,cut-off the water and alarm when the machine lacking water.
    2. The chamber of the sterilizer is made of stainless steel.

    Technical data:

    Technical data YSMJ-DA150 YSMJ-DA200 YSMJ-DA280 YSMJ-DA400 YSMJ-DA500
    Sterilizing chamber

    volume

    150L

    φ440×1000mm

    200L

    φ515×1000mm

    c 400L

    Φ700×1100mm

    500L

    Φ700×1300mm

    working pressure 0.22MPa
    working  temperature 134℃
    Adjustment of temperature 105℃ – 134℃
    Time of sterilization 0-60 min
    Time of drying 0-60 min
    Heat average ≤±1℃
    Power 9KW/380V 50Hz 9KW/380V 50Hz 12KW/380V 50Hz 18KW/380V 50Hz 18KW/380V 50Hz
    Dimension 1400×600×

    1300

    1400×670×

    1650

    1400×770×

    1780

    1430×880×

    1830

    1800×900×

    1820

    Transport dimension 1550×750×

    1850

    1560×820×

    1850

    c 1800×1050×

    2100

    1850×1050×

    2100

    G.W/N.W 320/240 KG 350/260 KG 465/365 KG 530/520 KG 580/470 KG
